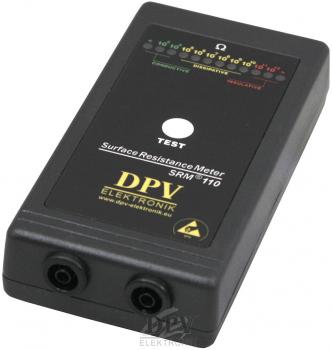

SRM 110 Surface Resistance Tester

The compact SRM 110 surface resistance tester is ideal for checking electrostatically conductive and dissipative surfaces. This handy pocket-sized meter offers easy operation and precise results for ESD-controlled environments

Technical Specifications:

- Measurement Range: 10³ - 10¹² Ohm

- Test Voltage: 10 V / 100 V

- Display: 12-digit LED dot display

- Electrodes: Integrated metal bar electrode (connection of external electrodes possible)

- Operating Mode: Battery operated

- Width: 65 mm

- Height: 31 mm

- Length: 130 mm

- Weight: 240 g

- Recommended Calibration Interval: 24 months or as per testing equipment list

- Test Voltage: 100 V

Included in the delivery are the device, a storage pouch, a grounding cable, a 9V block battery, and a factory calibration certificate. Item number: 7100.SRM110. Ideal for use in quality assurance and maintenance work.
